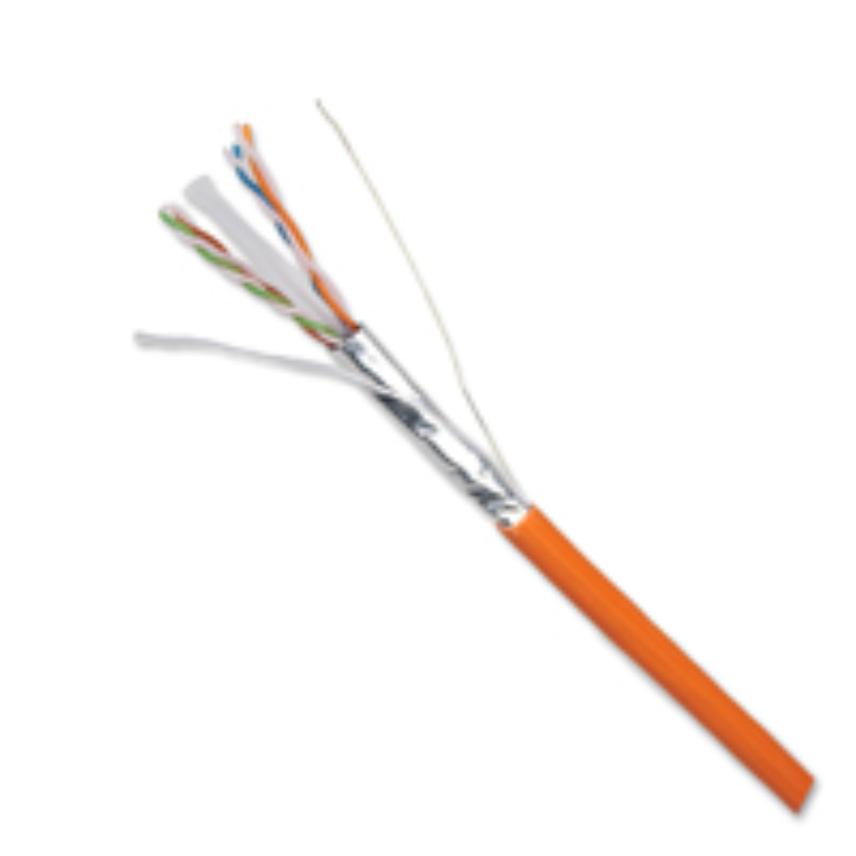

LANmark-6A Cable (International)

Products

LANmark-6A F/FTP AWG23 Cat 6A LSZH Orange 1000m reel

Nexans ref. N100.692G

  • Packaging: Reel (1000m)
  • Type of cable: F/FTP
  • Outer sheath: LSZH



LANmark-6A F/FTP AWG23 Cat 6A LSZH-FRT Orange 1000m reel

Nexans ref. N100.692G-O5

  • Packaging: Reel (1000m)
  • Type of cable: F/FTP
  • Outer sheath: LSZH-FR



LANmark-6A F/UTP AWG23 Cat 6A LSZH Orange 1000m reel NEW

Nexans ref. N100.671G

  • Packaging: Reel (1000m)
  • Type of cable: F/UTP
  • Outer sheath: LSZH



LANmark-6A F/UTP AWG23 Cat 6A LSZH Orange 500m reel NEW

Nexans ref. N100.672G

  • Packaging: Reel (500m)
  • Type of cable: F/UTP
  • Outer sheath: LSZH



LANmark-6A F/UTP AWG23 Cat 6A LSZH-FRT Orange 1000m reel

Nexans ref. N100.675G-O5

  • Packaging: Reel (1000m)
  • Type of cable: F/UTP
  • Outer sheath: LSZH-FR



LANmark-6A F/UTP AWG23 Cat 6A LSZH-FRT Orange 500m reel

Nexans ref. N100.676G-O5

  • Packaging: Reel (1000m)
  • Type of cable: F/UTP
  • Outer sheath: LSZH-FR



LANmark-6A U/FTP AWG23 Cat 6A LSZH-FRT Orange 1000m reel NEW

Nexans ref. N100.682G-O5

  • Packaging: Reel (1000m)
  • Type of cable: U/FTP
  • Outer sheath: LSZH-FR



Description

Description

Standards

  • International
    EN 50173-1; EN 50288-4-1; IEC 61156-5; ISO/IEC 11801
  • National
    ANSI/TIA-568-C.2

Application

LANmark-6A cables are the ideal solution for a 10G Ethernet network. The range has been designed specifically to support the higher frequencies required for 10 Gigabit Ethernet, while maintaining full backwards compatibility with today's needs. All LANmark-6A cables are shielded, in order to ensure immunity to Alien Crosstalk and other external interferences.

  • 10Base-T Ethernet
  • 100Base-TX Fast Ethernet
  • 1000Base-TX Gigabit Ethernet
  • 10GBase-T 10 Gigabit Ethernet IEEE 802.3
  • 155 Mbit ATM
  • 1.2 Gbit ATM
  • future Cat 6A and Class EA applications

Performance

With guaranteed performance to 500MHz, Nexans LANmark-6A cables exceed the requirements of the International, European and American cable standards, including ISO/IEC 11801, IEC 61156-5, EN 50173, EN 50288 and TIA/EIA 568-C.2.

When used in combination with Nexans LANmark-6A Evo connectors and LANmark-6A Ultim patch cords, the system supports the 10GBase-T applications as defined in IEEE 802.3an and meets or exceeds the link and channel requirements for Category 6A and Class EA as defined in TIA/EIA 568-C.2 and ISO/IEC 11801.

Installation

The LANmark-6A cables have the advantage of offering flexibility for installation and termination.

To support the correct set-up of hand held analysers for installation testing, the actual cable NVP value is given in the cable’s print legend.

Guarantees

Traceability codes on both cable and packaging ensure quality validation of the installed cable.

Installations with LANmark-6A cable and connectivity are qualified for a 25 year full system warranty, which includes Parts, Channel Performance, Application Support and Labour, as described in the Nexans Certified System Warranty.
