2PH526
Nexans ref. 2PH526
- Packaging: Cut to length (m)
- Fiber optic type: OM1 62.5/125
- Number of optical fibres: 1
- Approximate weight: 6 kg/km
- Outer Diameter: 2 mm
- Maximum tensile strength dynamic: 125 N/mm2
- Maximum tensile strength static: 250 N/mm2
- Minimum dynamic operating bending radius: 40.0 mm
- Minimum static operating bending radius: 20 mm
2PH527
Nexans ref. 2PH527
- Packaging: Cut to length (m)
- Fiber optic type: OM1 62.5/125
- Number of optical fibres: 2
- Approximate weight: 20 kg/km
- Outer Diameter: 6 mm
- Maximum tensile strength dynamic: 250 N/mm2
- Maximum tensile strength static: 500 N/mm2
- Minimum dynamic operating bending radius: 120.0 mm
- Minimum static operating bending radius: 60 mm
2PH528
Nexans ref. 2PH528
- Packaging: Cut to length (m)
- Fiber optic type: OM1 62.5/125
- Number of optical fibres: 4
- Approximate weight: 40 kg/km
- Outer Diameter: 7 mm
- Maximum tensile strength dynamic: 500 N/mm2
- Maximum tensile strength static: 1000 N/mm2
- Minimum dynamic operating bending radius: 140.0 mm
- Minimum static operating bending radius: 70 mm
2PH529
Nexans ref. 2PH529
- Packaging: Cut to length (m)
- Fiber optic type: OM1 62.5/125
- Number of optical fibres: 6
- Approximate weight: 60 kg/km
- Outer Diameter: 8 mm
- Maximum tensile strength dynamic: 750 N/mm2
- Maximum tensile strength static: 1500 N/mm2
- Minimum dynamic operating bending radius: 160.0 mm
- Minimum static operating bending radius: 80 mm
2PH530
Nexans ref. 2PH530
- Packaging: Cut to length (m)
- Fiber optic type: OM1 62.5/125
- Number of optical fibres: 8
- Approximate weight: 80 kg/km
- Outer Diameter: 8.5 mm
- Maximum tensile strength dynamic: 1000 N/mm2
- Maximum tensile strength static: 2000 N/mm2
- Minimum dynamic operating bending radius: 170.0 mm
- Minimum static operating bending radius: 85 mm
2PH550
Nexans ref. 2PH550
- Packaging: Cut to length (m)
- Fiber optic type: OM3 50/125
- Number of optical fibres: 2
- Approximate weight: 40 kg/km
- Outer Diameter: 7 mm
- Maximum tensile strength dynamic: 250 N/mm2
- Maximum tensile strength static: 500 N/mm2
- Minimum dynamic operating bending radius: 120.0 mm
- Minimum static operating bending radius: 60 mm
2PH551
Nexans ref. 2PH551
- Packaging: Cut to length (m)
- Fiber optic type: OM3 50/125
- Number of optical fibres: 4
- Approximate weight: 40 kg/km
- Outer Diameter: 7 mm
- Maximum tensile strength dynamic: 500 N/mm2
- Maximum tensile strength static: 1000 N/mm2
- Minimum dynamic operating bending radius: 140.0 mm
- Minimum static operating bending radius: 70 mm
2PH552
Nexans ref. 2PH552
- Packaging: Cut to length (m)
- Fiber optic type: OM3 50/125
- Number of optical fibres: 6
- Approximate weight: 60 kg/km
- Outer Diameter: 8 mm
- Maximum tensile strength dynamic: 750 N/mm2
- Maximum tensile strength static: 1500 N/mm2
- Minimum dynamic operating bending radius: 160.0 mm
- Minimum static operating bending radius: 80 mm
2PH553
Nexans ref. 2PH553
- Packaging: Cut to length (m)
- Fiber optic type: OM3 50/125
- Number of optical fibres: 8
- Approximate weight: 80 kg/km
- Outer Diameter: 8.5 mm
- Maximum tensile strength dynamic: 1000 N/mm2
- Maximum tensile strength static: 2000 N/mm2
- Minimum dynamic operating bending radius: 170.0 mm
- Minimum static operating bending radius: 85 mm
Description
Description
Standards
-
InternationalEN 45545-2 (HL3)

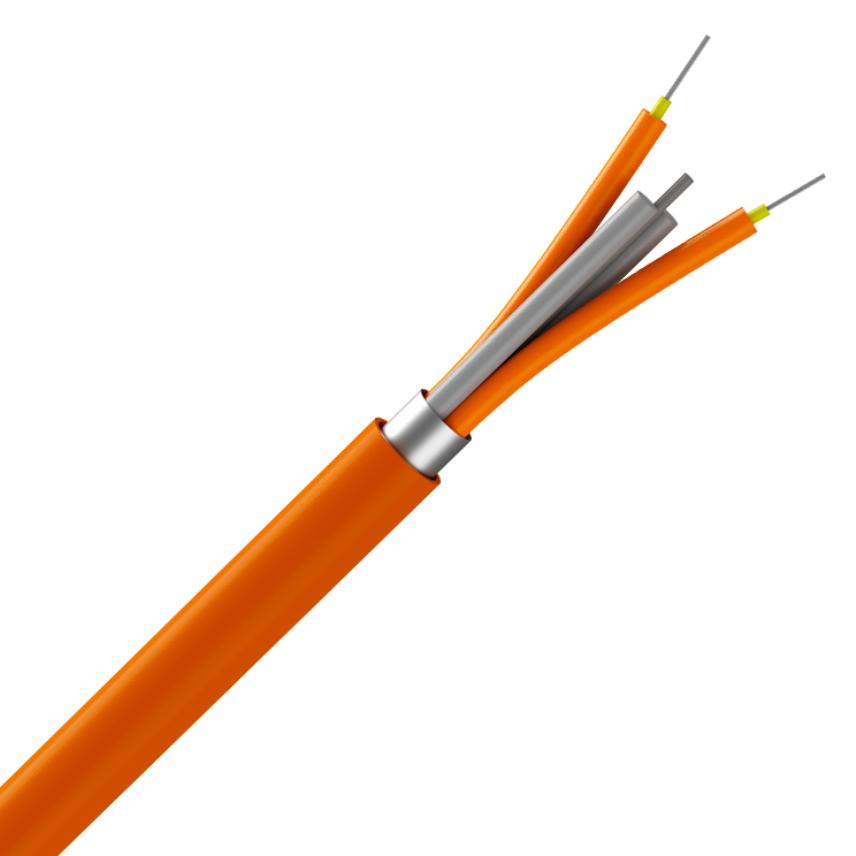

Nexans produces a range of optical fiber cables OM1 (62.5/125 μm) and OM3 (50/125 μm) for onboard communication and data transmission. With its halogen-free cross-linked sheathing material the FLAMEX® optical fiber cables conform to the rolling stock requirements.
DESIGN
- Patch cord
Core: glass OM 1 or OM 3 (Diameter = 62.5 or 50μm)
Cladding: glass (Diameter = 125 ± 3 μm)
Coating: acrylate (Diameter = 245 ± 10 μm)
Buffer: Thermoplastic elastomer (Diameter = 900 ± 50 μm)
Reinforcement: Aramid yarns
Sheath: Halogen-free FLAMEX® according to EN 50264-1 type EM 104( Diameter = 2.00 ± 0.15 mm)
- Tape (for multi-fibers)
- Outer sheath
Cross-linked halogen-free FLAMEX® according to EN 50264-1 type EM 104
FIRE SAFETY STANDARDS
FLAMEX® optical fiber cables are conform to EN 45545-2. On top some cables are designed to withstand fire tests according to NFPA 130 and GOST-R 31565
MARKING
Example:
FLAMEX P/Number Nexans - number of fiber x 62.5/125 - month and year of production
