2PC912
Nexans ref. 2PC912
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 2 x (2 x 0.25²)
- Sheath colour: Black
- Core identification: Red,Yellow,Blue,Black
- Nominal outer diameter: 6.5 mm
- Approximate weight: 55 kg/km
- Minimum operating temperature: -25 °C
2PK592
Nexans ref. 2PK592
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 2 x (2 x 0.50²)
- Sheath colour: Black
- Core identification: By Identification tapes - Red,Yellow,Blue
- Nominal outer diameter: 9.7 mm
- Approximate weight: 120 kg/km
- Minimum operating temperature: -25 °C
2PI232
Nexans ref. 2PI232
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 2 x (2 x 0.50²)
- Sheath colour: Black
- Core identification: By Identification tapes - Red,Yellow,Blue
- Nominal outer diameter: 9.7 mm
- Approximate weight: 120 kg/km
- Minimum operating temperature: -40 °C
2PK319
Nexans ref. 2PK319
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x 0.25²
- Sheath colour: Blue
- Core identification: C
- Nominal outer diameter: 6.7 mm
- Approximate weight: 65 kg/km
- Minimum operating temperature: -25 °C
2PK699
Nexans ref. 2PK699
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x 0.25²
- Sheath colour: Blue
- Core identification: C
- Nominal outer diameter: 6.7 mm
- Approximate weight: 65 kg/km
- Minimum operating temperature: -40 °C
2PK211
Nexans ref. 2PK211
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x 0.50²
- Sheath colour: Blue
- Core identification: C
- Nominal outer diameter: 8.5 mm
- Approximate weight: 96 kg/km
- Minimum operating temperature: -25 °C
2PK698
Nexans ref. 2PK698
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x 0.50²
- Sheath colour: Blue
- Core identification: C
- Nominal outer diameter: 8.5 mm
- Approximate weight: 96 kg/km
- Minimum operating temperature: -40 °C
Ethenet 4 x AWG 20/19
Nexans ref. 45923010
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x AWG 20/19
- Sheath colour: Black
- Core identification: D
- Nominal outer diameter: 7.8 mm
- Approximate weight: 96 kg/km
- Minimum operating temperature: -40 °C
Ethernet 4 x AWG 22/19 (0,34²)
Nexans ref. 45993310
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x AWG 22/19 (0,34²)
- Sheath colour: Black
- Core identification: C
- Nominal outer diameter: 6.9 mm
- Approximate weight: 74 kg/km
- Minimum operating temperature: -40 °C
Ethernet 4 x AWG 22/19 (0,34²)
Nexans ref. 45994010
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x AWG 22/7 (0,34²)
- Sheath colour: Black
- Core identification: C
- Nominal outer diameter: 7.2 mm
- Approximate weight: 77 kg/km
- Minimum operating temperature: -40 °C
2PM022
Nexans ref. 2PM022
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x AWG 22/7 (0,34²)
- Sheath colour: Blue
- Core identification: C
- Nominal outer diameter: 6.5 mm
- Approximate weight: 62 kg/km
- Minimum operating temperature: -25 °C
2PG229
Nexans ref. 2PG229
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x AWG 22/7 (0,34²)
- Sheath colour: Black
- Core identification: D
- Nominal outer diameter: 6.5 mm
- Approximate weight: 62 kg/km
- Minimum operating temperature: -25 °C
2PM676
Nexans ref. 2PM676
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x AWG 22/7 (0,34²)
- Sheath colour: Blue
- Core identification: C
- Nominal outer diameter: 6.5 mm
- Approximate weight: 62 kg/km
- Minimum operating temperature: -40 °C
2PK847
Nexans ref. 2PK847
- Packaging: Cut to length (m)
- Type of cable: CAT 5E
- Construction type: 4 x AWG 22/7 (0,34²)
- Sheath colour: Black
- Core identification: D
- Nominal outer diameter: 6.5 mm
- Approximate weight: 62 kg/km
- Minimum operating temperature: -40 °C
2PM577
Nexans ref. 2PM577
- Packaging: Cut to length (m)
- Type of cable: CAT 6A
- Construction type: 4 x (2 x 0.25²)
- Sheath colour: Blue
- Core identification: Red,Yellow,Blue,Black
- Nominal outer diameter: 8.5 mm
- Approximate weight: 80 kg/km
- Minimum operating temperature: -40 °C
2PM578
Nexans ref. 2PM578
- Packaging: Cut to length (m)
- Type of cable: CAT 6A
- Construction type: 4 x (2 x 0.50²)
- Sheath colour: Blue
- Core identification: Red,Yellow,Blue,Black
- Nominal outer diameter: 11.9 mm
- Approximate weight: 147 kg/km
- Minimum operating temperature: -40 °C
2PM615
Nexans ref. 2PM615
- Packaging: Cut to length (m)
- Type of cable: CAT 7
- Construction type: 4 x (2 x 0.25²)
- Sheath colour: Blue
- Core identification: Red,Yellow,Blue,Black
- Nominal outer diameter: 8.5 mm
- Approximate weight: 82 kg/km
- Minimum operating temperature: -40 °C
2PM622
Nexans ref. 2PM622
- Packaging: Cut to length (m)
- Type of cable: CAT 7
- Construction type: 4 x (2 x AWG 24/7)
- Sheath colour: Black
- Core identification: Red,Yellow,Blue,Black
- Nominal outer diameter: 8.1 mm
- Approximate weight: 71 kg/km
- Minimum operating temperature: -40 °C
2PM697
Nexans ref. 2PM697
- Packaging: Cut to length (m)
- Type of cable: CAT 7
- Construction type: 4 x (2 x AWG 26/7)
- Sheath colour: Black
- Core identification: Red,Yellow,Blue,Black
- Nominal outer diameter: 7.1 mm
- Approximate weight: 55 kg/km
- Minimum operating temperature: -40 °C
2PM617
Nexans ref. 2PM617
- Packaging: Cut to length (m)
- Type of cable: CAT 7A
- Construction type: 4 x (2 x 0.25²)
- Sheath colour: Black
- Core identification: Red,Yellow,Blue,Black
- Nominal outer diameter: 8.5 mm
- Approximate weight: 85 kg/km
- Minimum operating temperature: -40 °C
Description
Description
Standards
-
InternationalEN 45545-2 (HL3)

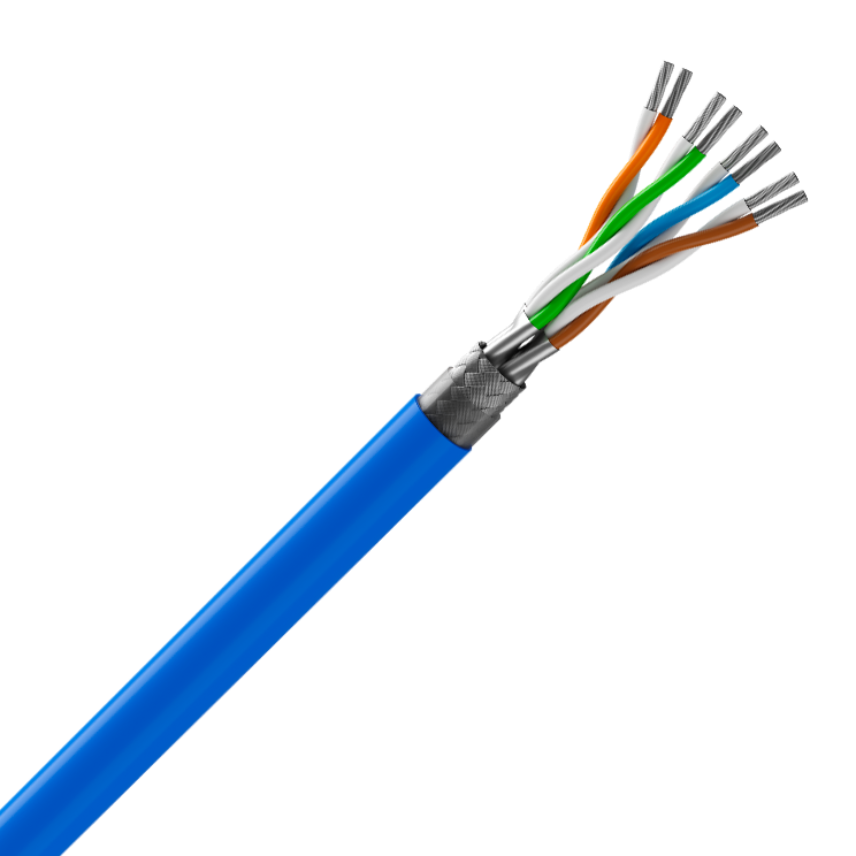

Nexans develops halogen-free communication cables for higher transmission performances to address emerging applications.
FLAMEX® communication cables are conform to EN 45545-2, easy to pool, quick to connect and compatible with standard connectors, and designed to improve the protection against electrical disturbances, electromagnetic noises. Nexans experience in the design of shielding technology enables us to propose all constructions with high EMC protection. All these features make FLAMEX® cables the best candidate for new built and retrofit works.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
A: Color coding for pairs
N°1: white + blue
N°2: white + orange
N°3: white + green
N°4: white + brown
B: Color coding for pairs: N°1: white + blue N°2: yellow + orange
C: Color coding for quads: N°1: white + blue N°2: yellow + orange
D: Color coding for quads: N°1: white + yellow N°2: red + black
