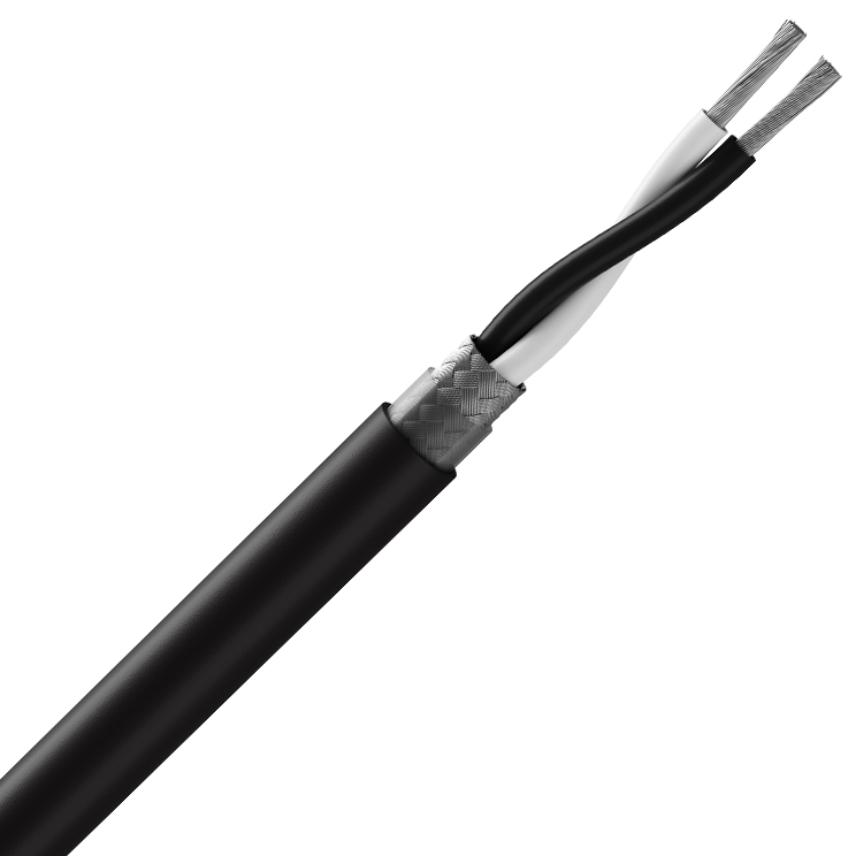

FLAMEX® WIRE TRAIN BUS (WTB) 120 Ω

Products

FLAMEX WTB 2x0,75²

Nexans ref. 2PF578

  • Packaging: Spool (1000m)
  • Sheath colour: Black
  • Nominal outer diameter: 8.2 mm
  • Approximate weight: 87 kg/km
  • Minimum operating temperature: -40 °C



FLAMEX WTB 2x0,75²

Nexans ref. 2PK595

  • Packaging: Spool (1000m)
  • Sheath colour: Turquoise
  • Nominal outer diameter: 8.5 mm
  • Approximate weight: 92 kg/km
  • Minimum operating temperature: -25 °C



Description

Description

Standards

  • International
    EN 45545-2 (HL3)



Nexans develops halogen-free communication cables for higher transmission performances to address emerging applications.

FLAMEX® communication cables are conform to EN 45545-2, easy to pool, quick to connect and compatible with standard connectors, and designed to improve the protection against electrical disturbances, electromagnetic noises. Nexans experience in the design of shielding technology enables us to propose all constructions with high EMC protection. All these features make FLAMEX® cables the best candidate for new built and retrofit works.



FIRE SAFETY

FLAMEX® WTB cables are conform to EN 45545-2 HL3



GUIDE TO USE

  • Cabling rules are given in EN 50343 and EN 50355
  • Permissible current carrying capacities: values and calculation method are given in EN 50343
  • Bending radius:
    • Static use: ... x outer cable diameter
    • For installation and occasional movements: ... x outer cable diameter



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of cable
WTB
Construction type
2 x 0.75²
Core identification
Black, White
Halogen free
EN 60754-1 & EN 60684-2
Outer sheath
Cross-linked compound

Usage characteristics

Usage characteristics

Flame retardant
EN 60332-1-2
Fire retardant
IEC 60332-3-25
Smoke density
EN/IEC 61034-2
Gases toxicity
EN 50305-9.2
Electro magnetic interference resistance
Yes
Chemical resistance
Excellent
