HFIX 450/750V

Products

HFIX solid - 1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 1.5 mm²
  • Maximum outer diameter: 3.3 mm
  • Approximate weight: 21 kg/km



HFIX solid - 2,5mm²

Nexans ref. 84031103

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 2.5 mm²
  • Maximum outer diameter: 4.0 mm
  • Approximate weight: 32 kg/km



HFIX solid - 4mm²

Nexans ref. 84009130

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 4 mm²
  • Maximum outer diameter: 4.6 mm
  • Approximate weight: 47 kg/km



HFIX solid - 6mm²

Nexans ref. 84009106

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 6 mm²
  • Maximum outer diameter: 5.2 mm
  • Approximate weight: 67 kg/km



HFIX solid - 10mm²

Nexans ref. 84009112

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 10 mm²
  • Maximum outer diameter: 6.5 mm
  • Approximate weight: 108 kg/km



HFIX solid - 16mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 16 mm²
  • Maximum outer diameter: 8.0 mm
  • Approximate weight: 167 kg/km



HFIX solid - 25mm²

Nexans ref. 84018660

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 25 mm²
  • Maximum outer diameter: 10.1 mm
  • Approximate weight: 260 kg/km



HFIX solid - 35mm²

Nexans ref. 14018667

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 35 mm²
  • Maximum outer diameter: 11.3 mm
  • Approximate weight: 354 kg/km



HFIX solid - 50mm²

Nexans ref. 14018674

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 50 mm²
  • Maximum outer diameter: 13.2 mm
  • Approximate weight: 491 kg/km



HFIX solid - 70mm²

Nexans ref. 14018682

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 70 mm²
  • Maximum outer diameter: 15.1 mm
  • Approximate weight: 681 kg/km



HFIX solid - 95mm²

Nexans ref. 14019263

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 95 mm²
  • Maximum outer diameter: 17.6 mm
  • Approximate weight: 933 kg/km



HFIX solid - 120mm²

Nexans ref. 14018688

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 120 mm²
  • Maximum outer diameter: 19.4 mm
  • Approximate weight: 1162 kg/km



HFIX solid - 150mm²

Nexans ref. 14021098

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 150 mm²
  • Maximum outer diameter: 21.6 mm
  • Approximate weight: 1446 kg/km



HFIX solid - 185mm²

Nexans ref. 14027591

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 185 mm²
  • Maximum outer diameter: 24.1 mm
  • Approximate weight: 1808 kg/km



HFIX solid - 240mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 240 mm²
  • Maximum outer diameter: 27.5 mm
  • Approximate weight: 2353 kg/km



HFIX solid - 300mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Conductor cross-section: 300 mm²
  • Maximum outer diameter: 30.6 mm
  • Approximate weight: 2948 kg/km



HFIX stranded - 1,5mm²

Nexans ref. 84009118

  • Type of conductor: Stranded, class 2
  • Conductor cross-section: 1.5 mm²
  • Maximum outer diameter: 3.4 mm
  • Approximate weight: 23 kg/km



HFIX stranded - 2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Conductor cross-section: 2.5 mm²
  • Maximum outer diameter: 4.1 mm
  • Approximate weight: 33 kg/km



HFIX stranded - 4mm²

Nexans ref. 84009100

  • Type of conductor: Stranded, class 2
  • Conductor cross-section: 4 mm²
  • Maximum outer diameter: 4.7 mm
  • Approximate weight: 50 kg/km



HFIX stranded - 6mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Conductor cross-section: 6 mm²
  • Maximum outer diameter: 5.4 mm
  • Approximate weight: 71 kg/km



HFIX stranded - 10mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Conductor cross-section: 10 mm²
  • Maximum outer diameter: 7.0 mm
  • Approximate weight: 116 kg/km



Description

Description

Standards

  • International
    2014/68/EU
  • National
    11-SDMS-03, Rev.01; KS C 3341

Application

The conductor for the circuits of electrical equipment or instrumentation. Flame retardant and low toxic cross-linked polyefin cable which operates in maximum temperature 90°C.



Standard

KS C 3341: Flame retardant and low toxic cross-linked polyefin power cable and insulated wire



Construction

1. Conductor: Solid conductor, (Class 1), Annealed copper stranded conductor (Class 2)

2. Insulation: Flame retardant and low toxic XLPO, operating temperature 90°C.



Colors

Standard color are black, white, red, green, yellow and blue.

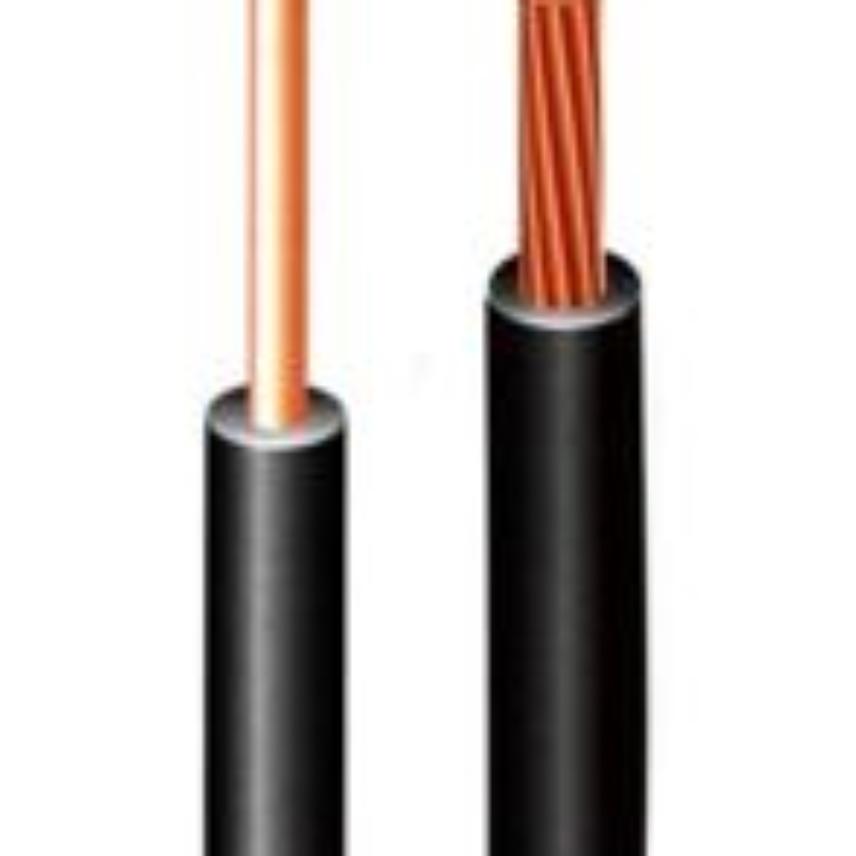

HFIX 450/750V design

 ##image:57005##





Conductor

Insulation

   ##image:57006##





Conductor

Insulation

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Insulation
XLPE

Electrical characteristics

Electrical characteristics

Test voltage
2500 V
Insulation resistance at 90°C
3.67 MOhm.km
Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Maximum operating temperature
90 °C
