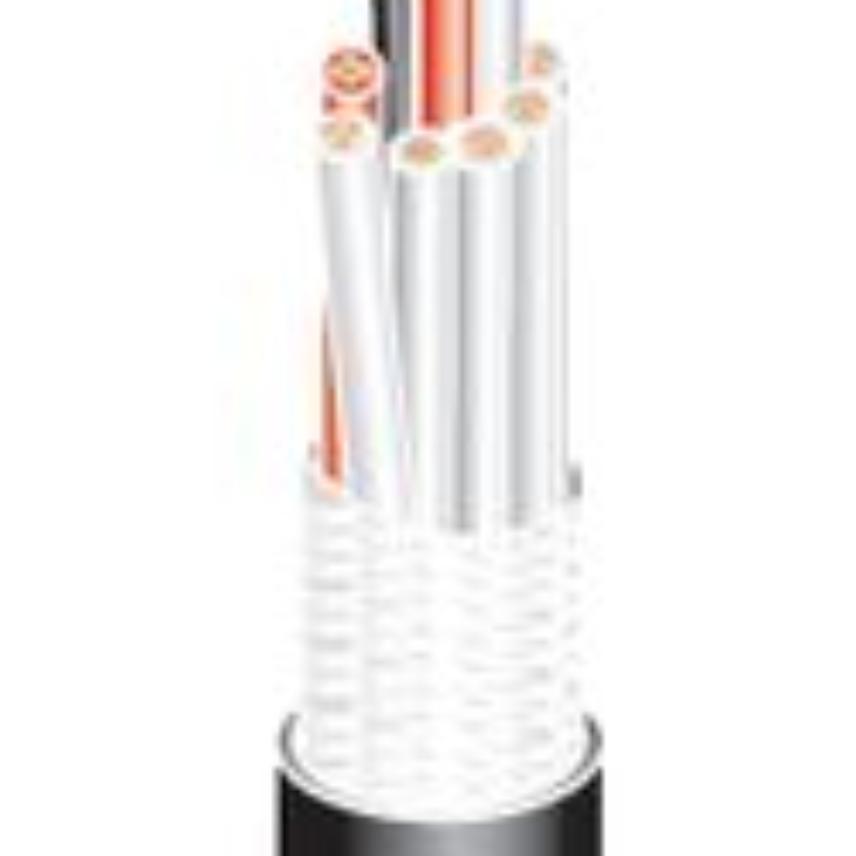

TFR-3 0.6/1kV

Products

TFR-3 solid 2x1.5mm²

Nexans ref. 14005708

  • Type of conductor: Solid, Class 1
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 11 mm



TFR-3 solid 2x2,5mm²

Nexans ref. 84003139

  • Type of conductor: Solid, Class 1
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 12 mm



TFR-3 solid 2x4mm²

Nexans ref. 84003564

  • Type of conductor: Solid, Class 1
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 13 mm



TFR-3 solid 3x1.5mm²

Nexans ref. 14005709

  • Type of conductor: Solid, Class 1
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 11.5 mm



TFR-3 solid 3x2,5mm²

Nexans ref. 84003228

  • Type of conductor: Solid, Class 1
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 12.5 mm



TFR-3 solid 3x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 13.5 mm



TFR-3 solid 4x1.5mm²

Nexans ref. 14006067

  • Type of conductor: Solid, Class 1
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 12 mm



TFR-3 solid 4x2,5mm²

Nexans ref. 14005951

  • Type of conductor: Solid, Class 1
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 13 mm



TFR-3 solid 4x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 14.5 mm



TFR-3 solid 5x1.5mm²

Nexans ref. 14006620

  • Type of conductor: Solid, Class 1
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 13 mm



TFR-3 solid 5x2,5mm²

Nexans ref. 84003177

  • Type of conductor: Solid, Class 1
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 14 mm



TFR-3 solid 5x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 15.5 mm



TFR-3 solid 6x1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 6
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 14 mm



TFR-3 solid 6x2,5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 6
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 15 mm



TFR-3 solid 6x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 6
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 16.5 mm



TFR-3 solid 7x1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 7
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 14 mm



TFR-3 solid 7x2,5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 7
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 15 mm



TFR-3 solid 7x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 7
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 16.5 mm



TFR-3 solid 8x1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 8
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 15 mm



TFR-3 solid 8x2,5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 8
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 16.5 mm



TFR-3 solid 8x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 8
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 18.5 mm



TFR-3 solid 10x1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 10
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 17 mm



TFR-3 solid 10x2,5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 10
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 18.5 mm



TFR-3 solid 10x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 10
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 20.5 mm



TFR-3 solid 12x1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 12
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 17.5 mm



TFR-3 solid 12x2,5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 12
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 19 mm



TFR-3 solid 12x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 12
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 21 mm



TFR-3 solid 15x1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 15
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 19 mm



TFR-3 solid 15x2,5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 15
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 20.5 mm



TFR-3 solid 15x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 15
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 23 mm



TFR-3 solid 20x1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 20
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 27.5 mm



TFR-3 solid 20x2,5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 20
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 23 mm



TFR-3 solid 20x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 20
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 25.5 mm



TFR-3 solid 30x1.5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 30
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 24 mm



TFR-3 solid 30x2,5mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 30
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 26.5 mm



TFR-3 solid 30x4mm²

Nexans ref.

  • Type of conductor: Solid, Class 1
  • Number of cores: 30
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 29.5 mm



TFR-3 stranded 2x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 11.5 mm



TFR-3 stranded 2x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 12 mm



TFR-3 stranded 2x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 13.5 mm



TFR-3 stranded 3x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 12 mm



TFR-3 stranded 3x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 13 mm



TFR-3 stranded 3x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 14 mm



TFR-3 stranded 4x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 12.5 mm



TFR-3 stranded 4x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 13.5 mm



TFR-3 stranded 4x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 15 mm



TFR-3 stranded 5x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 13.5 mm



TFR-3 stranded 5x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 14.5 mm



TFR-3 stranded 5x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 16 mm



TFR-3 stranded 6x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 6
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 14.5 mm



TFR-3 stranded 6x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 6
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 16 mm



TFR-3 stranded 6x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 6
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 17.5 mm



TFR-3 stranded 7x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 7
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 14.5 mm



TFR-3 stranded 7x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 7
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 16 mm



TFR-3 stranded 7x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 7
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 17.5 mm



TFR-3 stranded 8x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 8
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 16 mm



TFR-3 stranded 8x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 8
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 17.5 mm



TFR-3 stranded 8x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 8
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 19 mm



TFR-3 stranded 10x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 10
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 17.5 mm



TFR-3 stranded 10x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 10
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 19.5 mm



TFR-3 stranded 10x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 10
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 21.5 mm



TFR-3 stranded 12x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 12
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 18 mm



TFR-3 stranded 12x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 12
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 20 mm



TFR-3 stranded 12x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 12
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 22 mm



TFR-3 stranded 15x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 15
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 20 mm



TFR-3 stranded 15x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 15
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 22 mm



TFR-3 stranded 15x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 15
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 24.5 mm



TFR-3 stranded 20x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 20
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 22 mm



TFR-3 stranded 20x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 20
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 24 mm



TFR-3 stranded 20x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 20
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 27 mm



TFR-3 stranded 30x1.5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 30
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 25 mm



TFR-3 stranded 30x2,5mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 30
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 28 mm



TFR-3 stranded 30x4mm²

Nexans ref.

  • Type of conductor: Stranded, class 2
  • Number of cores: 30
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 31.5 mm



Description

Description

Standards

  • International
    Nexans specification
  • National
    KS C IEC 60502-1

Application

The heat-resisting cable for fire alarm of the residential, commercial building.
The flame retardant cable for tray conformed to the standard of technique of electrical equipment.



Standard

K 60502-1

Nexans standard



Construction

1. Conductor: Solid conductor (Class 1), Annealed copper stranded conductor, Class  2

2. Insulation: Cross-linked polyethylene (XLPE), Max operating temperature: 90°C.

3. Unit: Cabling circularly insulated solid conductor in case of more 2 cores

4. Outer sheath: Black flame retardant PVC (FR-PVC)



Colors

2 cores: White, Black
3 cores: White, Black, Red
4 cores: White, Black, Red, Green
more 5 cores: Numbering on black or white colored core.



Certification

KETI (Safety certification for electrical products)

TFR-3 0.6/1kV design

##image:56145##

Conductor

Insulation

Filler

Binder tape

Outer sheath (TFR-PVC)



The values of insulation resistance is not defined but only constant number of insulation resistance is defined.
(K=min. 36.7MΩ.km at room temperature, min. 0.037MΩ.km at 90°C)

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Insulation
XLPE
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Test voltage
3500 V
Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Operating temperature, range
-15 ... 60 °C
Flame retardant
KSC IEC 60332-3
Bending factor when installed
12 (xD)
