TFR-CV 0.6/1kV

Products

TFR-CV 1x 1.5mm²

Nexans ref. 14004310

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 6.5 mm



TFR-CV 1x 2,5mm²

Nexans ref. 14003387

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 7 mm



TFR-CV 1x 4mm²

Nexans ref. 14003369

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 7.5 mm



TFR-CV 1x 6mm²

Nexans ref. 14004311

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 6 mm²
  • Outer Diameter: 8 mm



TFR-CV 1x 10mm²

Nexans ref. 14003371

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 10 mm²
  • Outer Diameter: 9 mm



TFR-CV 1x 16mm²

Nexans ref. 14004312

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 16 mm²
  • Outer Diameter: 9.5 mm



TFR-CV 1x 25mm²

Nexans ref. 14004314

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 25 mm²
  • Outer Diameter: 11 mm



TFR-CV 1x 35mm²

Nexans ref. 14004315

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 35 mm²
  • Outer Diameter: 12 mm



TFR-CV 1x 50mm²

Nexans ref. 14004151

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 50 mm²
  • Outer Diameter: 13.5 mm



TFR-CV 1x 70mm²

Nexans ref. 14003894

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 70 mm²
  • Outer Diameter: 15.5 mm



TFR-CV 1x 95mm²

Nexans ref. 14003864

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 95 mm²
  • Outer Diameter: 17 mm



TFR-CV 1x 120mm²

Nexans ref. 14003867

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 120 mm²
  • Outer Diameter: 19 mm



TFR-CV 1x 150mm²

Nexans ref. 14004153

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 150 mm²
  • Outer Diameter: 21 mm



TFR-CV 1x 185mm²

Nexans ref. 14003880

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 185 mm²
  • Outer Diameter: 23 mm



TFR-CV 1x 240mm²

Nexans ref. 14004191

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 240 mm²
  • Outer Diameter: 26 mm



TFR-CV 1x 300mm²

Nexans ref. 14004105

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 300 mm²
  • Outer Diameter: 28.5 mm



TFR-CV 1x 400mm²

Nexans ref. 14004317

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 400 mm²
  • Outer Diameter: 32 mm



TFR-CV 1x 500mm²

Nexans ref. 14004318

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 500 mm²
  • Outer Diameter: 36 mm



TFR-CV 1x 630mm²

Nexans ref. 14004319

  • Colour: Natural
  • Number of cores: 1
  • Conductor cross-section: 630 mm²
  • Outer Diameter: 40.5 mm



TFR-CV 2x 1.5mm²

Nexans ref. 14006639

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 10.5 mm



TFR-CV 2x 2,5mm²

Nexans ref. 14004515

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 11.5 mm



TFR-CV 2x 4mm²

Nexans ref. 14004184

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 12.5 mm



TFR-CV 2x 6mm²

Nexans ref. 14004183

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Outer Diameter: 13.5 mm



TFR-CV 2x 10mm²

Nexans ref. 14004152

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 10 mm²
  • Outer Diameter: 15.5 mm



TFR-CV 2x 16mm²

Nexans ref. 14004149

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Outer Diameter: 16.5 mm



TFR-CV 2x 25mm²

Nexans ref. 14004269

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 25 mm²
  • Outer Diameter: 20 mm



TFR-CV 2x 35mm²

Nexans ref. 14004270

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 35 mm²
  • Outer Diameter: 22 mm



TFR-CV 2x 50mm²

Nexans ref. 14004619

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 50 mm²
  • Outer Diameter: 25 mm



TFR-CV 2x 70mm²

Nexans ref. 14005847

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 70 mm²
  • Outer Diameter: 28.5 mm



TFR-CV 2x 95mm²

Nexans ref. 14005848

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 95 mm²
  • Outer Diameter: 32 mm



TFR-CV 2x 120mm²

Nexans ref. 14004056

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 120 mm²
  • Outer Diameter: 35.5 mm



TFR-CV 2x 150mm²

Nexans ref. 14050745

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 150 mm²
  • Outer Diameter: 40 mm



TFR-CV 2x 185mm²

Nexans ref. 14028006

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 185 mm²
  • Outer Diameter: 44 mm



TFR-CV 2x 240mm²

Nexans ref. 14050746

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 240 mm²
  • Outer Diameter: 50 mm



TFR-CV 2x 300mm²

Nexans ref. 84003280

  • Colour: White / black
  • Number of cores: 2
  • Conductor cross-section: 300 mm²
  • Outer Diameter: 55 mm



TFR-CV 3x 1.5mm²

Nexans ref. 14004463

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 11 mm



TFR-CV 3x 2,5mm²

Nexans ref. 14003388

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 12 mm



TFR-CV 3x 4mm²

Nexans ref. 14003370

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 13 mm



TFR-CV 3x 6mm²

Nexans ref. 14003389

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Outer Diameter: 14.5 mm



TFR-CV 3x 10mm²

Nexans ref. 14003372

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Outer Diameter: 16.5 mm



TFR-CV 3x 16mm²

Nexans ref. 14003581

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Outer Diameter: 17.5 mm



TFR-CV 3x 25mm²

Nexans ref. 14003579

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 25 mm²
  • Outer Diameter: 21 mm



TFR-CV 3x 35mm²

Nexans ref. 14003582

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 35 mm²
  • Outer Diameter: 23.5 mm



TFR-CV 3x 50mm²

Nexans ref. 14004031

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 50 mm²
  • Outer Diameter: 26.5 mm



TFR-CV 3x 70mm²

Nexans ref. 14003594

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Outer Diameter: 30.5 mm



TFR-CV 3x 95mm²

Nexans ref. 14003739

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Outer Diameter: 34.5 mm



TFR-CV 3x 120mm²

Nexans ref. 14004465

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 120 mm²
  • Outer Diameter: 38.5 mm



TFR-CV 3x 150mm²

Nexans ref. 14005263

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 150 mm²
  • Outer Diameter: 43 mm



TFR-CV 3x 185mm²

Nexans ref. 14004466

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 185 mm²
  • Outer Diameter: 47.5 mm



TFR-CV 3x 240mm²

Nexans ref. 14005632

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 240 mm²
  • Outer Diameter: 53.5 mm



TFR-CV 3x 300mm²

Nexans ref. 84003295

  • Colour: White / Black / Red
  • Number of cores: 3
  • Conductor cross-section: 300 mm²
  • Outer Diameter: 59 mm



TFR-CV 4x 1.5mm²

Nexans ref. 14005630

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Outer Diameter: 12 mm



TFR-CV 4x 2,5mm²

Nexans ref. 14004620

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Outer Diameter: 13 mm



TFR-CV 4x 4mm²

Nexans ref. 14004185

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Outer Diameter: 14 mm



TFR-CV 4x 6mm²

Nexans ref. 14004193

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Outer Diameter: 15.5 mm



TFR-CV 4x 10mm²

Nexans ref. 14004194

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Outer Diameter: 17.5 mm



TFR-CV 4x 16mm²

Nexans ref. 14004186

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Outer Diameter: 19.5 mm



TFR-CV 4x 25mm²

Nexans ref. 14004200

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Outer Diameter: 23.5 mm



TFR-CV 4x 35mm²

Nexans ref. 14003895

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Outer Diameter: 25.5 mm



TFR-CV 4x 50mm²

Nexans ref. 14003890

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Outer Diameter: 29 mm



TFR-CV 4x 70mm²

Nexans ref. 14004682

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 70 mm²
  • Outer Diameter: 34 mm



TFR-CV 4x 95mm²

Nexans ref. 14004683

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Outer Diameter: 38.5 mm



TFR-CV 4x 120mm²

Nexans ref. 14004684

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Outer Diameter: 43 mm



TFR-CV 4x 150mm²

Nexans ref. 14004685

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Outer Diameter: 48 mm



TFR-CV 4x 185mm²

Nexans ref. 14005264

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 185 mm²
  • Outer Diameter: 53 mm



TFR-CV 4x 240mm²

Nexans ref. 14006629

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 240 mm²
  • Outer Diameter: 59.5 mm



TFR-CV 4x 300mm²

Nexans ref. 84003306

  • Colour: White / Black / Red / Green
  • Number of cores: 4
  • Conductor cross-section: 300 mm²
  • Outer Diameter: 66 mm



Description

Description

Standards

  • National
    KS C IEC 60502-1; KWS 410

Application

Power cable for residential, commercial building and distribution circuit.
The flame retardant cable for tray conformed to the standard of technique of electrical equipment.



Standard

K 60502-1: 0.6/1kV Cross-linked Polyethylene

KWS 410: 0.6/1kV Flame retardant power cable



Construction

1. Conductor: Annealed copper stranded conductor, Class 2

2. Insulation: Cross-linked Polyethylene (XLPE), Max. operating temperature 90°C.

3. Unit: Cabling circularly insulated solid wire in case of more than 2 cores

4. Outer sheath: Black flame retardant black PVC (TFR PVC)



Colors

2 cores: White /Black
3 cores: White / Black /Red,
4 cores: White / Black / Red / Green



Certification

KETI (Safety certification for electrical products)

KWS (Collective standard)

TFR-CV 0.6/1KV design

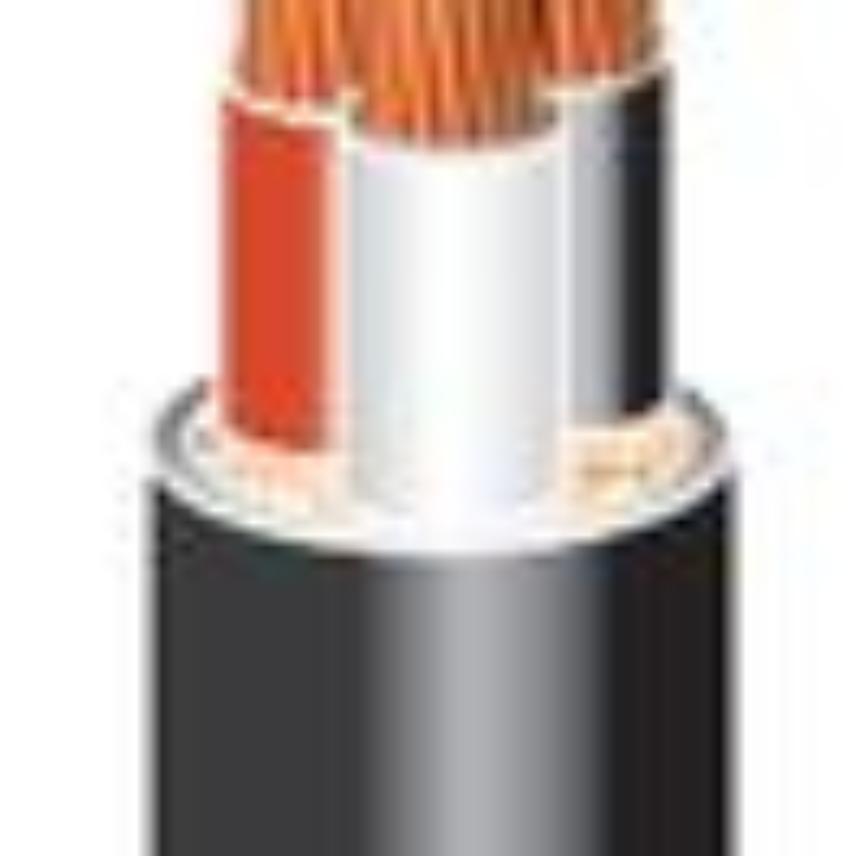

##image:55978##



Construction

Insulation

Filler

Binder tape

Outer sheath (TFR PVC)









The values of insulation resistance is not defined but only constant number of insulation resistance is defined
(K=min. 36.7MΩ.km at 90℃)

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Annealed copper
Type of conductor
Stranded, Class 2
Insulation
XLPE (Cross-linked Polyethylene)
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Test voltage
3500 V
Rated Voltage Uo/U (Um)
0.6/1 kV

Usage characteristics

Usage characteristics

Operating temperature, range
-15 - 60 °C
Flame retardant
KSC IEC 60332-3
Bending factor when installed
12 (xD)

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
