MV Bushings 400AR-4BC
MV Bushings 400AR-4BC
Equipment bushings connector for interface C. Up to 24 kV, 1250 A.
Read more
Description
Description
Standards
-
ProductCENELEC EN 50180
-
InternationalIEC 60137
Application
For use in equipment insulated with air, typically for transformers, switchgear, capacitors...
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
Design 400AR-4BC

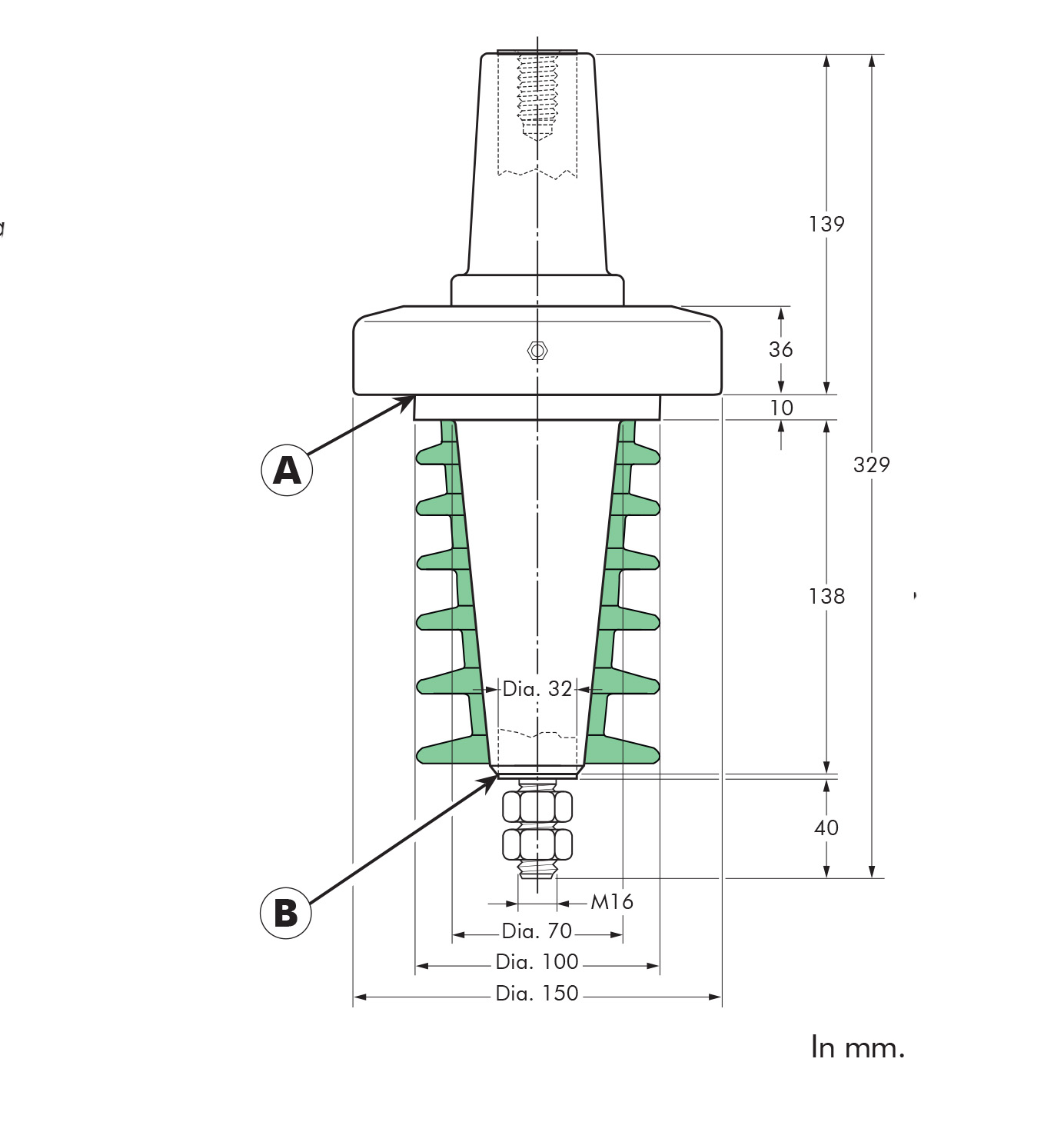

Drawings 400AR-4BC
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Creepage distance
315 mm
Electrical characteristics
Electrical characteristics
Rated current
1250 A
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor
Interface
C (630 - 1250 A)
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
