MV Straight Joints 36/42JTS3 K
MV Straight Joints 36/42JTS3 K
Heat-shrink MV straight joints for armored three core polymeric cables with Cu wire or tape screen. Up to 20,8/36 (42) kV.
Read more36JTS3.240K
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 22 ... 38 mm
- Length: 1600 mm
- Maximum outer diameter: 112.0 mm
- Minimum outer diameter: 66.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS3.300K
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 24 ... 42 mm
- Length: 1800 mm
- Maximum outer diameter: 118.0 mm
- Minimum outer diameter: 70.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS3.400K
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 2100 mm
- Maximum outer diameter: 132.0 mm
- Minimum outer diameter: 80.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
36JTS3.95K
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 32 mm
- Length: 1600 mm
- Maximum outer diameter: 92.0 mm
- Minimum outer diameter: 64.0 mm
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
42JTS3.240K
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 70 ... 240 mm²
- Diameter over insulation, range: 26 ... 42 mm
- Length: 1600 mm
- Maximum outer diameter: 114.0 mm
- Minimum outer diameter: 66.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS3.300K
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 95 ... 300 mm²
- Diameter over insulation, range: 28 ... 46 mm
- Length: 1800 mm
- Maximum outer diameter: 122.0 mm
- Minimum outer diameter: 70.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS3.400K
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 185 ... 400 mm²
- Diameter over insulation, range: 32 ... 48 mm
- Length: 2100 mm
- Maximum outer diameter: 136.0 mm
- Minimum outer diameter: 80.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
42JTS3.95K
Nexans ref.
- Packaging: Unit
- Conductor cross-section, range: 25 ... 95 mm²
- Diameter over insulation, range: 20 ... 34 mm
- Length: 1600 mm
- Maximum outer diameter: 94.0 mm
- Minimum outer diameter: 64.0 mm
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
Description
Description
Standards
-
ProductIEC 60502-4
-
TestCENELEC HD 629.1
Application
36/42JTS3 K heat-shrink straight joints are designed for armored, plastic insulated cables with Cu wire or Cu tape screen, to accommodate either crimped or mechanical connectors.
Technical characteristics
36/42JTS is the NEW high performance, compact and easy to install joint.
Double bodies with all the electrical functions integrated!

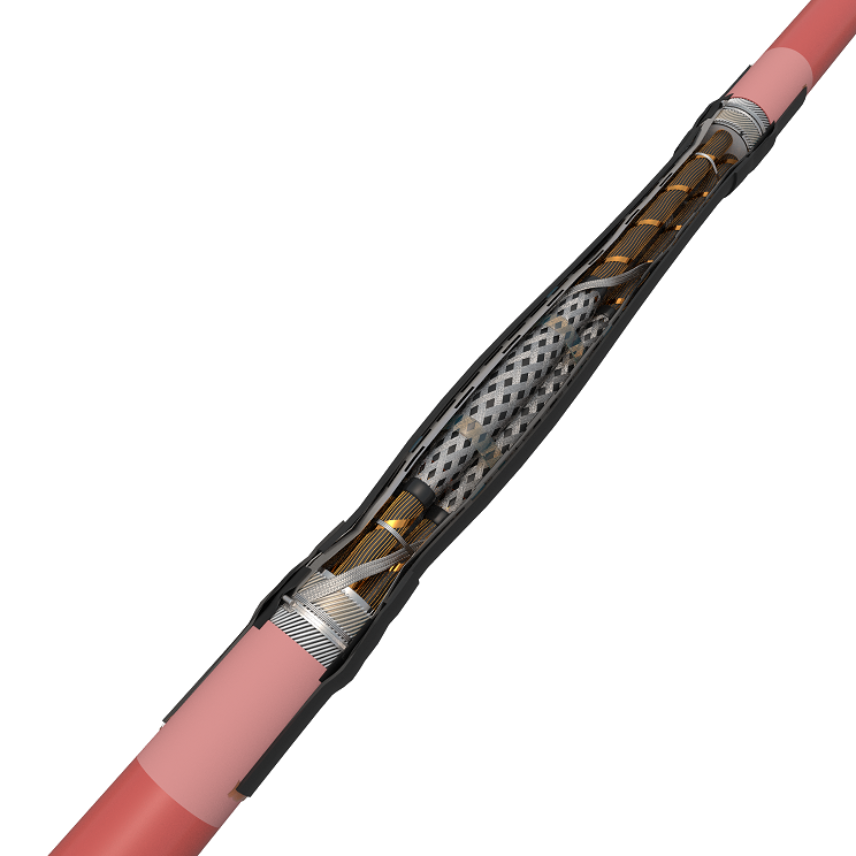

The Nexans 36/42JTS is an integrated coextruded “stress control field + insulating” tube nested in a coextruded “insulating + conductive” tube, which can withstand high voltage applications up to 42kV.
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field in the connector area.
Screen connection and armor continuity material whether SWA, STA, DSTA are included in the kit.
MC types are supplied with GPH® mechanical connectors.
The outer sheath is restored with heavy/medium wall adhesive lined tubing.
- 36JTS type tested with BIL at 200 kV, PD at 2Uo (≤ 10 pC)

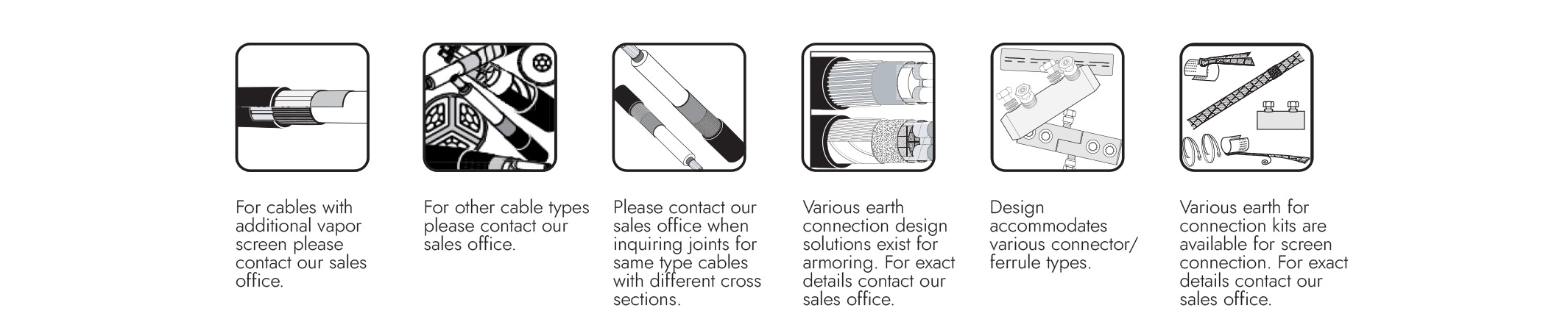

Recommendations JTS3 K
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
