MV Indoor Terminations ITK
MV Indoor Terminations ITK

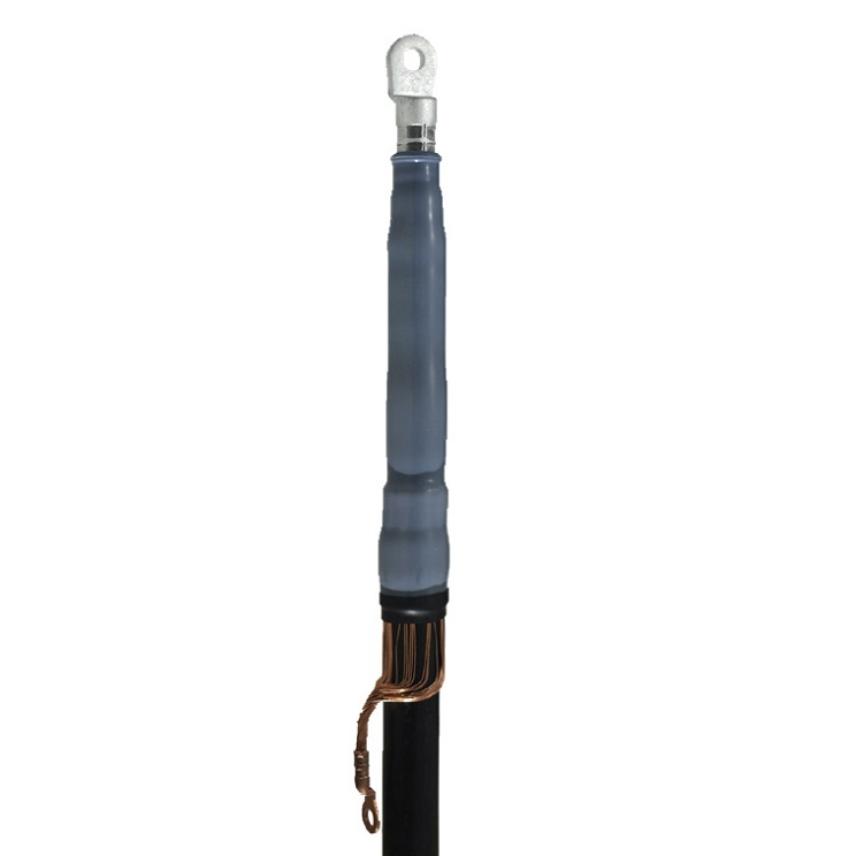

Cold shrinkable indoor terminations. Up to 12.7/22 (24) kV.
Read more3 x ITK 12-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 50 ... 400 mm²
- Diameter over insulation, range: 14 ... 33 mm
- Length: 260 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x ITK 12-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 400 ... 1000 mm²
- Diameter over insulation, range: 30 ... 50 mm
- Length: 300 mm
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x ITK 24-2
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 25 ... 240 mm²
- Diameter over insulation, range: 14 ... 33 mm
- Length: 260 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
3 x ITK 24-3
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 300 ... 800 mm²
- Diameter over insulation, range: 30 ... 50 mm
- Length: 300 mm
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
Description
Description
Standards
-
TestCENELEC HD 629.1
Application
A kit of 3 terminations for use indoors in controlled environmental conditions and subject to light condensation. To connect polymeric insulated cable to equipment. Used to connect polymeric insulated cable to equipment and for the outdoor terminating on to overhead lines or busbars.
Technical characteristics
- Water sealing mastic.
- Silicone tube.
- Stress control mastic.
- Conductive EPDM ring.

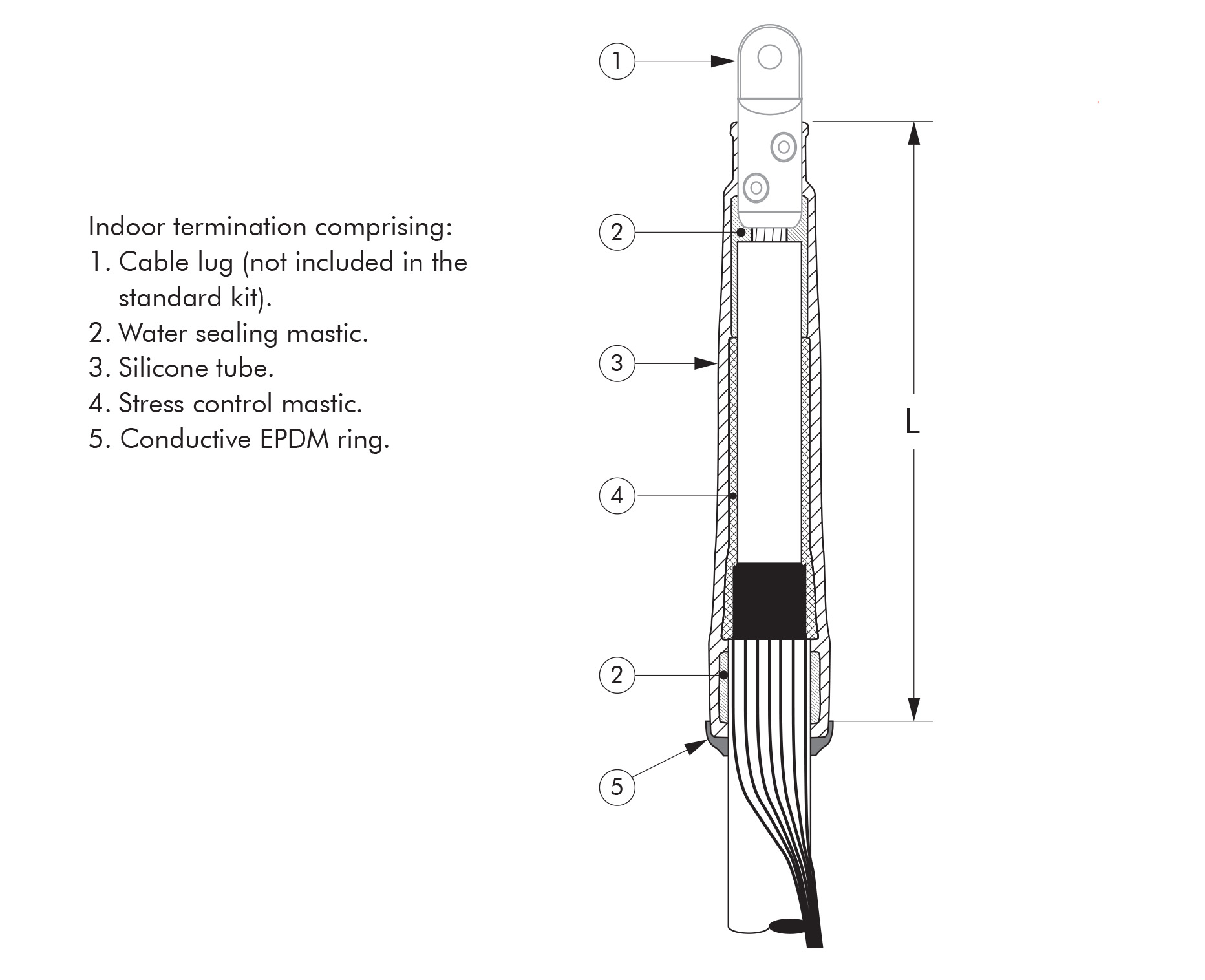

Design ITK

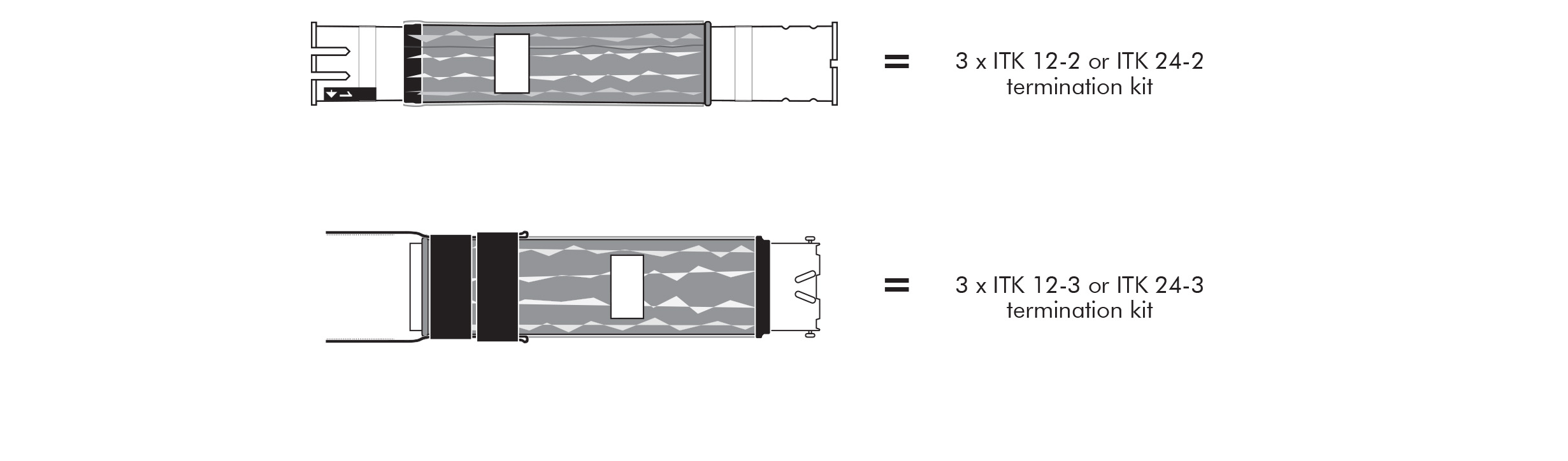

Kit contents ITK

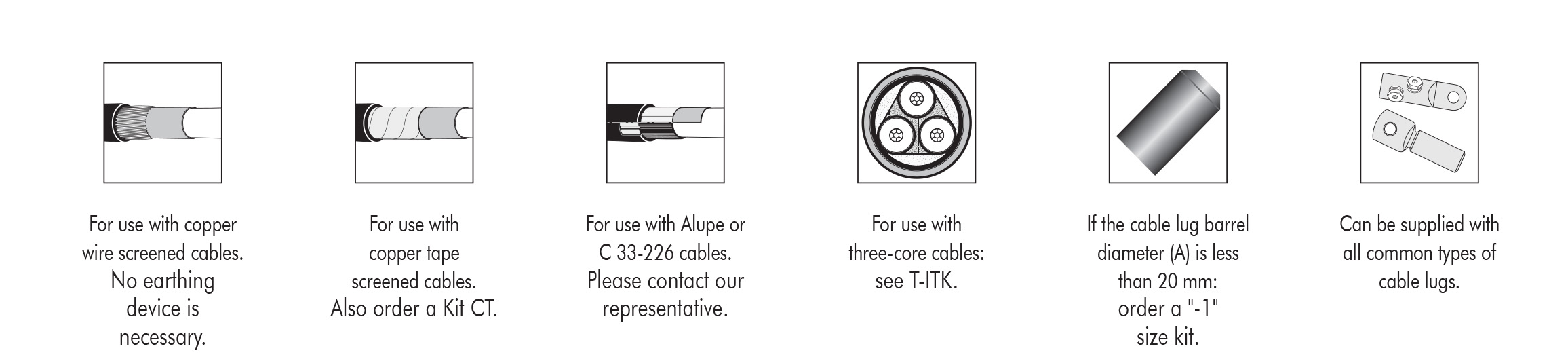

Recommandations ITK
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Field of application
Indoor
Water sealing
Mastic
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
