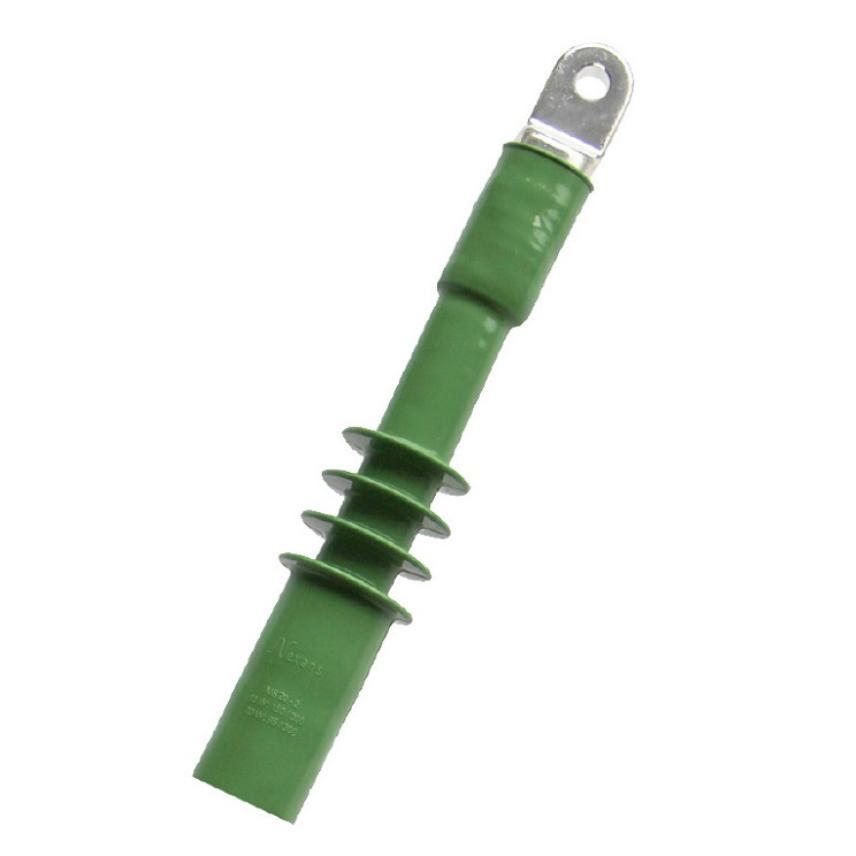

MV Indoor Terminations AIP
MV Indoor Terminations AIP
Standard duty slip-on indoor terminations. Up to 12.7/22 (24) kV.
Read more3 x AIP 20-1
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 70 ... 150 mm²
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
3 x AIP 20-1
Nexans ref.
- Packaging: Kit
- Conductor cross-section, range: 25 ... 120 mm²
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
Description
Description
Standards
-
TestCENELEC HD 629.1
Application
This termination is suitable for indoor installation on polymeric insulated medium voltage cables with extruded easy strip conductive screen or bonded extruded conductive screen.
Technical characteristics

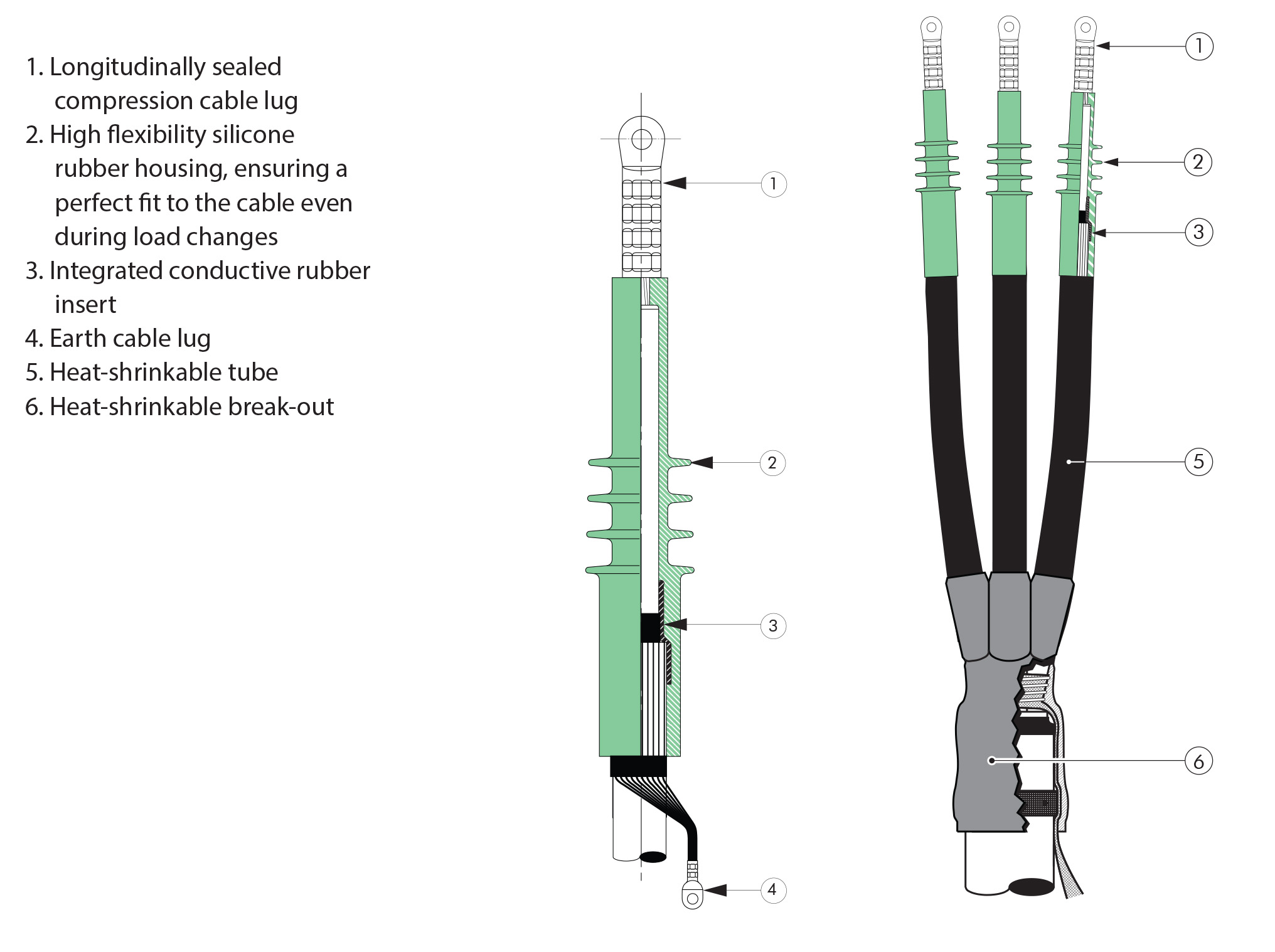

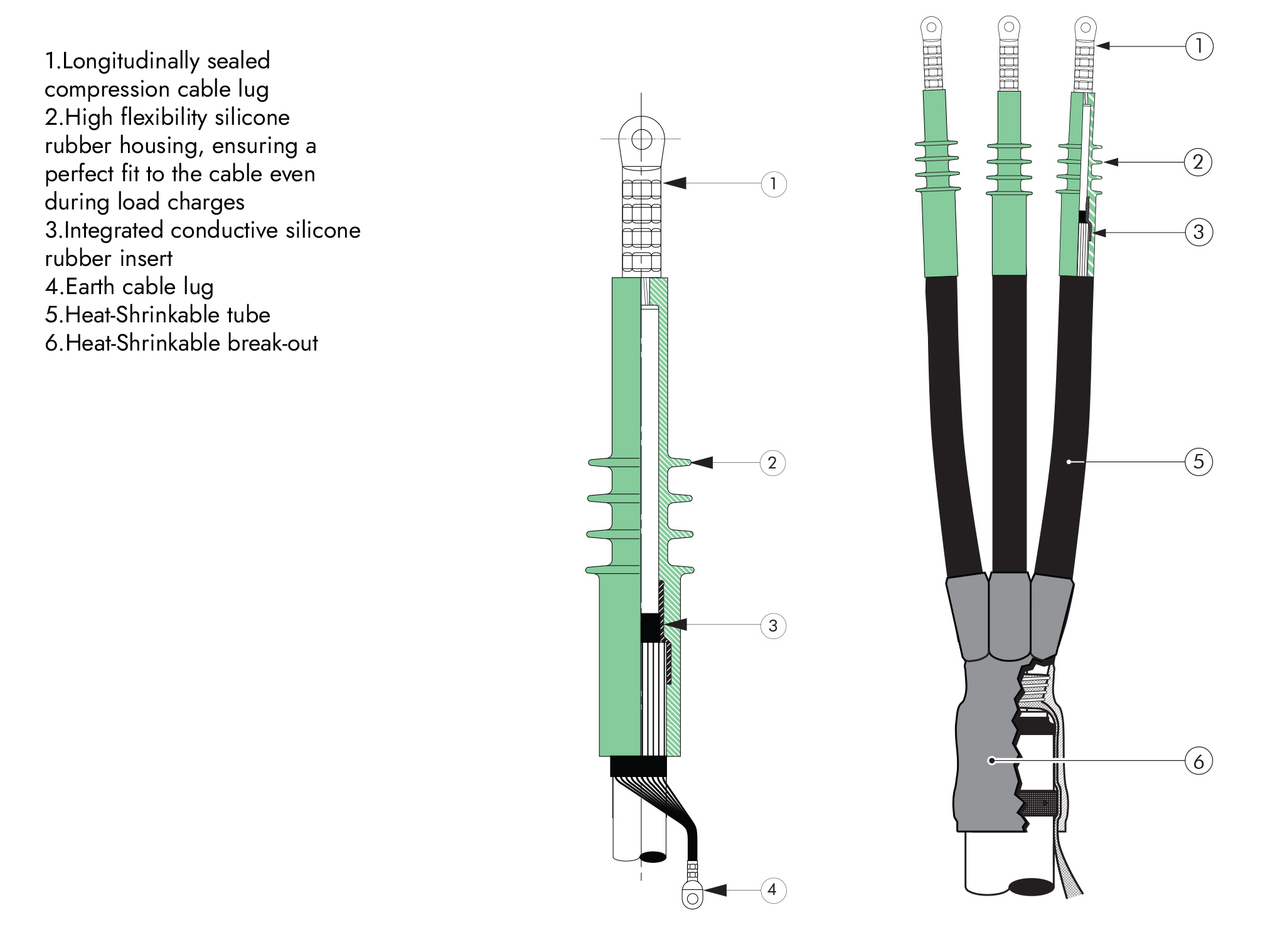

- High flexibility silicone rubber housing insert
- Integrated conductive silicone rubber insert
Design AIP
Scheme AIP
Scheme Legend AIP

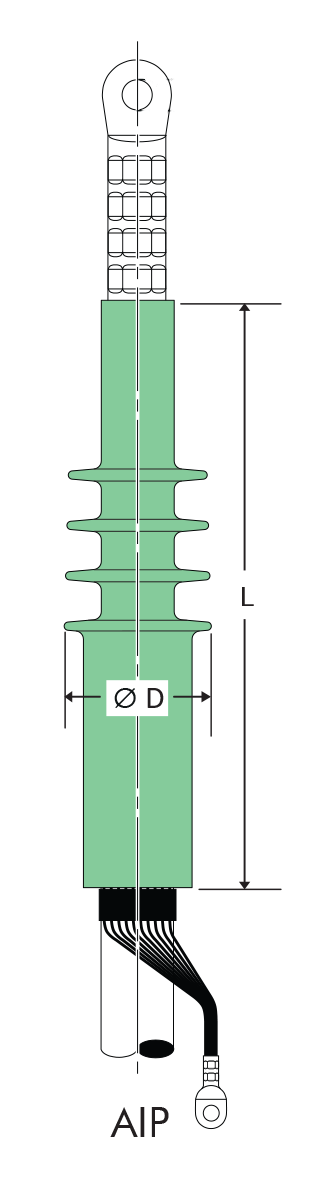

- D corresponds to the nominal overall diameter
- L corresponds to the length
Kit contents AIP
A basic kit always comprises 3 termination housings, the installation instructions. Cable lugs and earthing lugs are not inluded in the basic kit but can be ordered separatly.

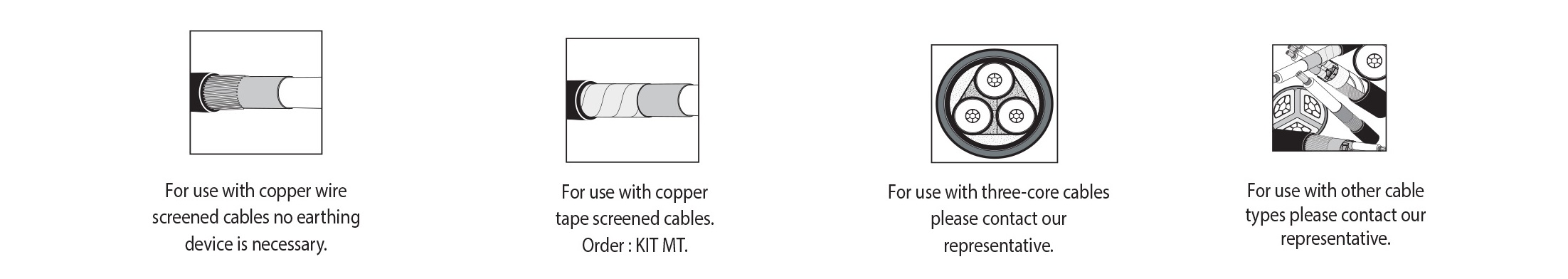

Recommendations AIP
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Diameter over insulation, range
17 ... 27 mm
Length
230 mm
Nominal overall diameter
49.0 mm
Usage characteristics
Usage characteristics
Field of application
Indoor
Resources
Resources
Selling & delivery Information
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
